Structural profile for flat roofs, even as a carrier layer for thermal insulation.

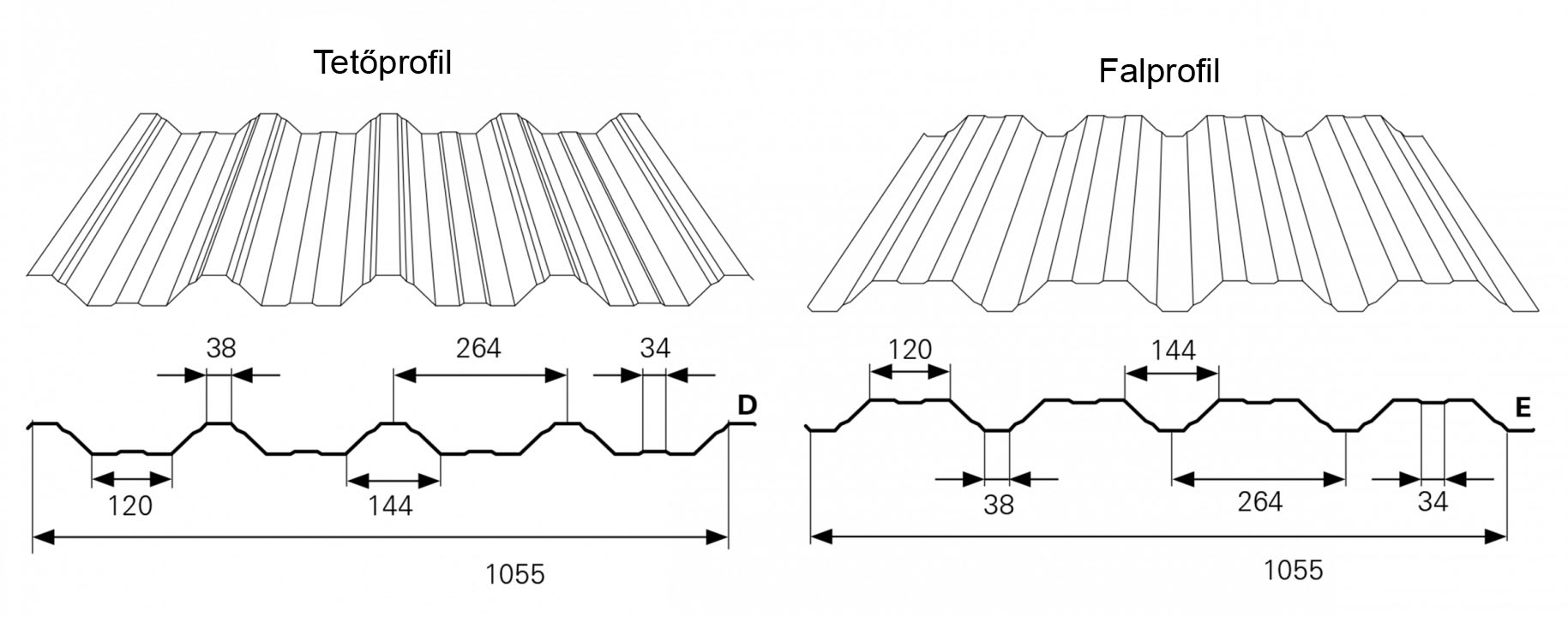

T50 trapezoidal sheet is used as a roof cladding or facade cladding due to its interesting pattern.
| Features | Dimensions |
|---|---|
| Plate thickness | 0,5mm - 1,0mm |
| Useful width | 1055 mm |
| Overall width | 1100 mm |
| Recommended max. plate length | 12000 mm |
| Profile height | 47 mm |
It is used as a ceiling and facade cladding material, and for cladding eaves and eaves soffits.
It is used as a roofing material for small buildings, as a cladding for side walls and as a sheet metal fence.
Recommended for roofing from 8° slope. The first choice for roofing agricultural stores, machinery sheds, granaries, factories, halls
The T40 trapezoidal sheet is the recommended roofing solution for the agricultural and industrial sectors, both as roofing and cladding.
The T153 Trapezoidal Plate is the heavy-duty, steel, load-bearing building construction element in the Zensteel range.
We can be used as roof cladding for halls, industrial buildings, outbuildings, even with felt coating.
It can also be used as structural slabs, for ceilings or as concrete formwork.
Structural roof profile used for the construction of halls and large industrial buildings.
The T80 high rib trapezoidal sheet is a product with very favourable parameters - as a construction profile with a height of 82 mm, it provides a large effective overlap width.
A very heavy-duty structural trapezoidal sheet used in long span load-bearing structures.
The T160 high rib trapezoidal sheet is a product with very favourable parameters - as a 160 mm high construction profile it provides a large effective overlap width.
