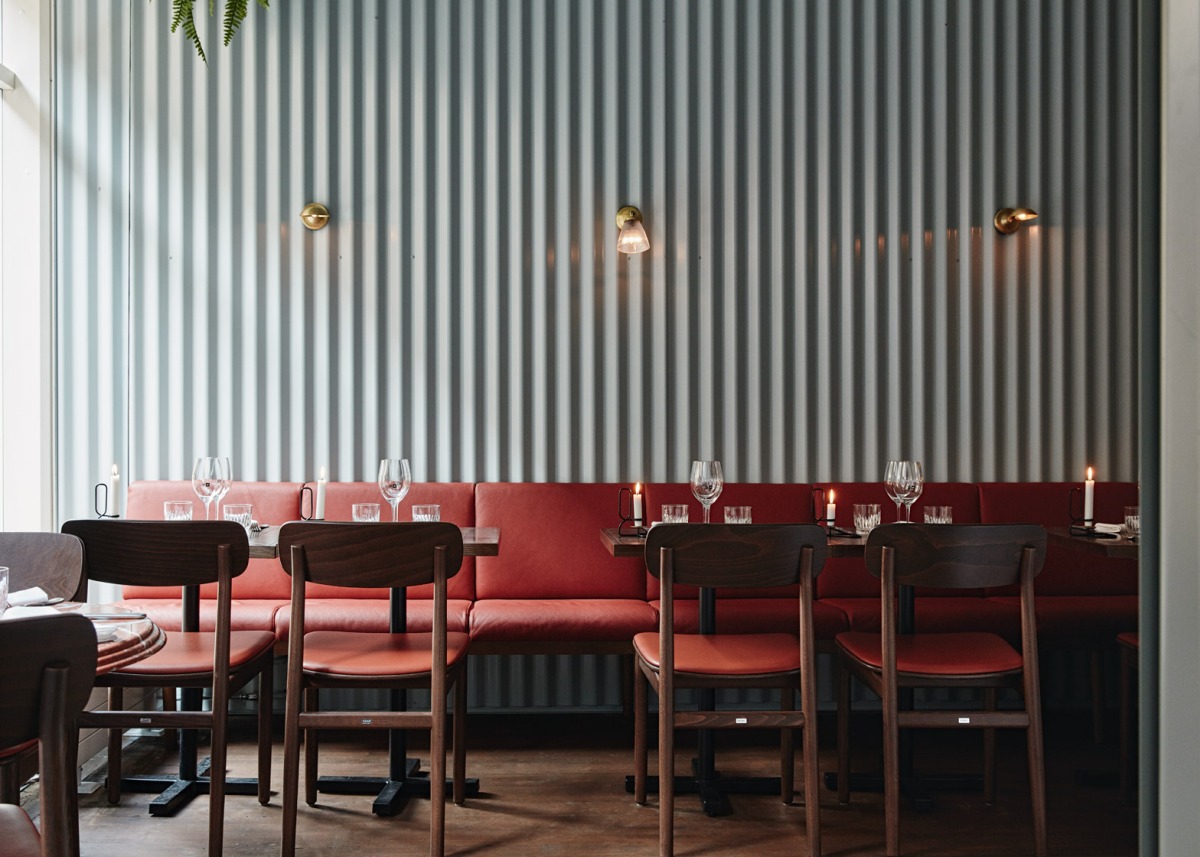

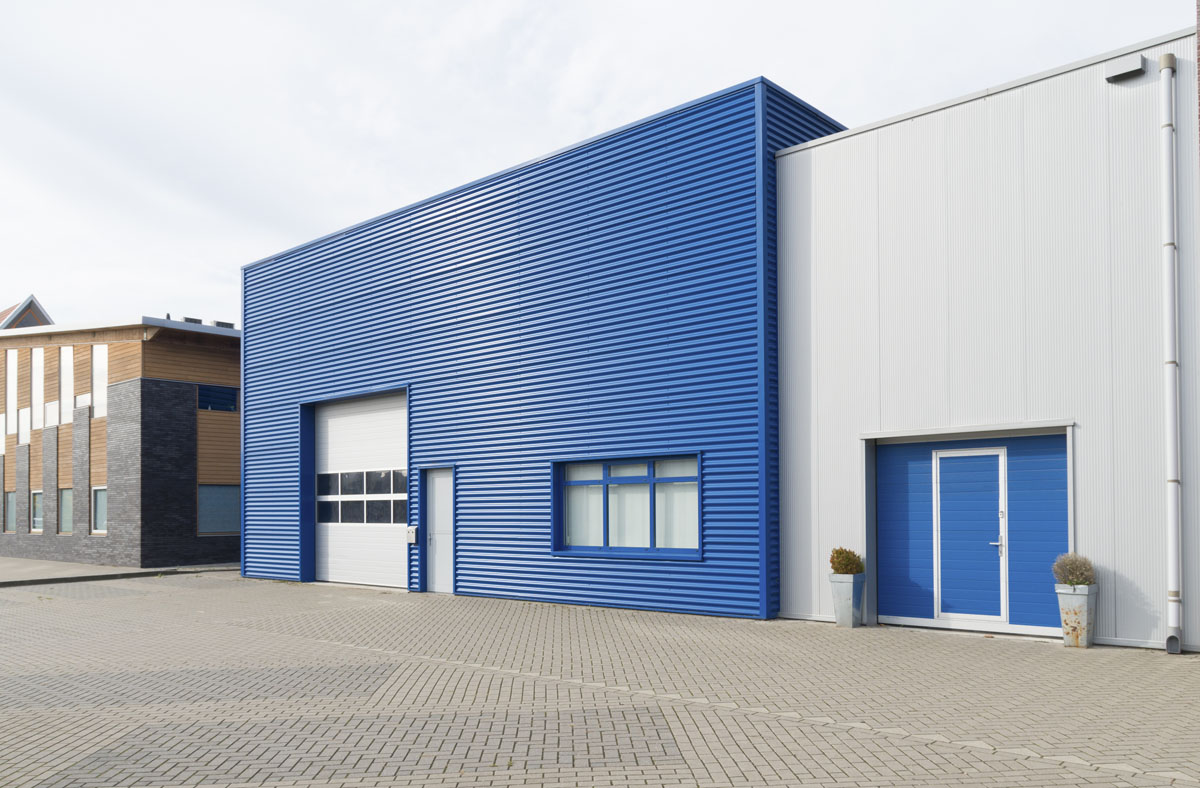

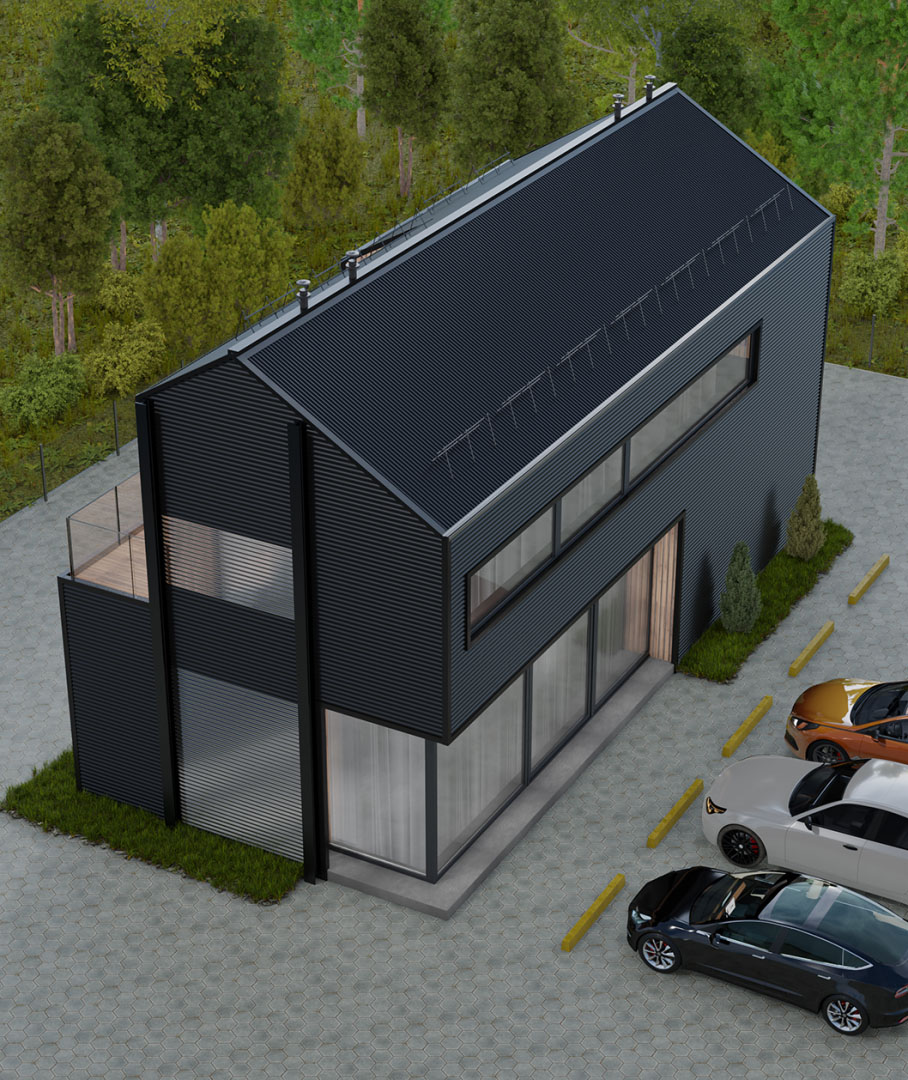

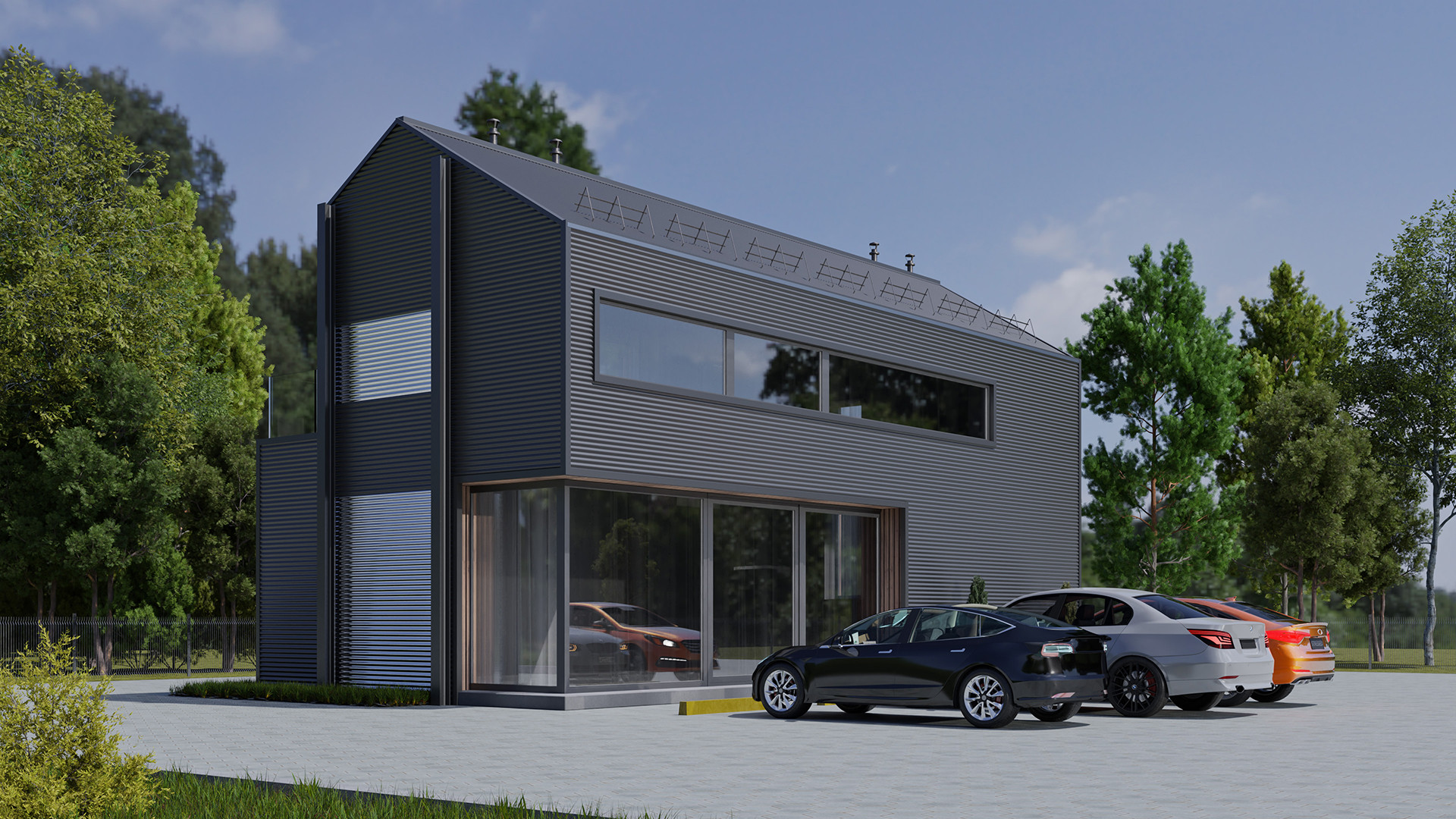

S18 sinusoidal sheet, also known as sinusoidal trapezoidal sheet or corrugated sheet, can be used as roofing material and as external and internal wall cladding in the construction and renovation of residential, agricultural, industrial and commercial buildings. In recent years, trapezoidal sheet has taken over the role of sinusoidal sheet in many cases, but its similarity makes it an excellent substitute for slate roofs and an ideal choice for the facade cladding of buildings with a sophisticated aesthetic appearance.
Profile picture
Profile photo
Production characteristics
- S18 sinusoidal sheet is available in nominal thicknesses of 0.4-0.7 mm depending on the requirements of the building
- standard length of modules 500-8500mm
- more than 25 matt and glossy colour options available
| Features | Dimensions |
|---|---|
| Raw material | colour galvanised steel sheet, coated on one side with polyester |
| Nominal thickness | 0,40mm - 0,70mm |
| Useful width | 1064 mm |
| Overall width | 1100 mm |
| Profile height | 18 mm |
| Weight | 3-7 kg/m2 |
| Price | individual pricing, ask for our offer! |
