The T160 high rib trapezoidal sheet is a product with very favourable parameters - as a 160 mm high construction profile it provides a large effective overlap width.
Its load-bearing capacity allows the distance between the support points to be increased in accordance with the parameters specified in the design. Product intended primarily for indoor use.
The T160 trapezoidal sheet is coated with an interior 15 μm polyester layer with a smooth, glossy surface. Due to the low thickness of the organic coating, it is mainly used for indoor applications in industrial installations not directly exposed to the weather.

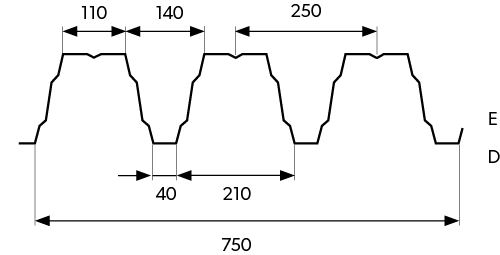

Profile picture

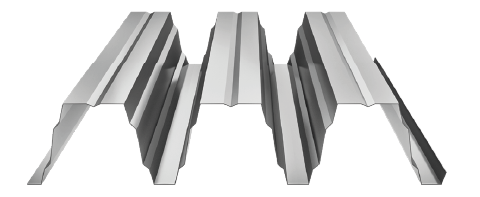

Profile photo
| Features | Dimensions |
|---|---|
| Plate thickness | 0,75mm - 1,5mm |
| Useful width | 750 mm |
| Overall width | ~790 mm |
| Recommended max. plate length | 14000 mm |
| Profile height | 162 mm |
| Minimum angle of inclination | 4° |
