We offer our special sandwich panels for various applications: livestock, special factory solutions, flat surface flat roofs, and cost-effective solutions for special cold storage environments.

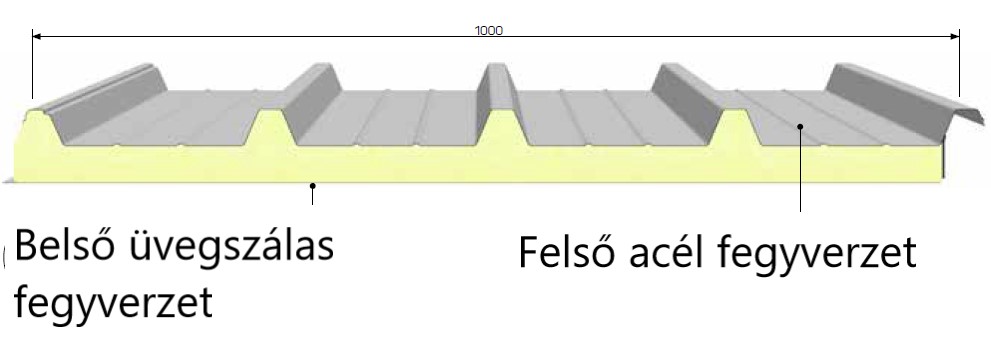

ISOVETRO mould resistant sandwich panel
A type of roof panel resistant to aggressive environments in agriculture and livestock farming. Aesthetically not different from the standard panel, its internal armouring is a fibreglass laminate layer. The absence of steel plate armouring on the inside and the rapid installation make the product cost-effective.
Technical data:
- Inner side armament: fibreglass laminated flat
- Insulating core: PUR foam
- External armament: pre-painted galvanised steel plate (EN10346)
Useful cover width: 1000mm
Benefits:
- An aesthetic and cost-effective solution
- Mould-resistant
- Hygienic
Resistant to aggressive factors

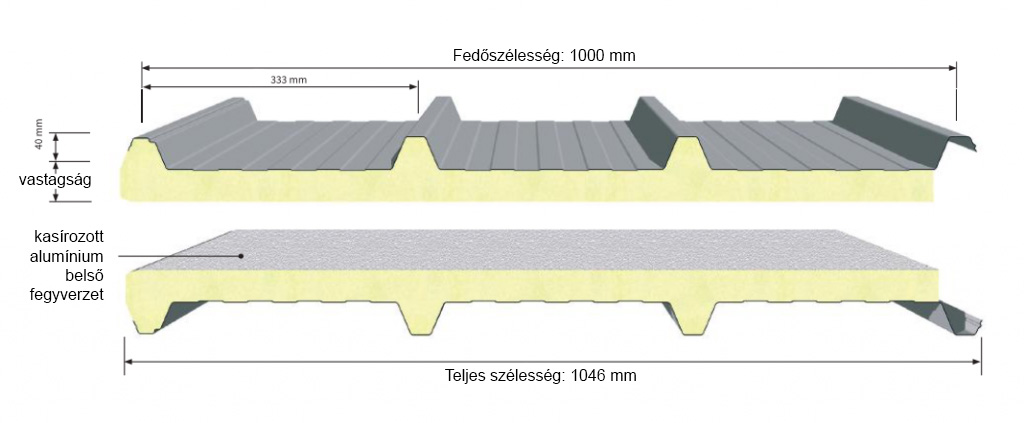

ISOGRECATA aluminium-glazed sandwich panel
The Isogrecata roof panel is an aluminium coated sandwich panel type, where the outer 5 ribbed armouring is made of painted steel and the inner side armouring is made of aluminium. It is typically used in special environments (the panel is even lighter than steel coated) or for cost efficiency.
Technical data:
- Inner side armament: casivated aluminium
- Insulating core: PUR foam
- External armament: pre-painted galvanised steel plate (EN10346)
- Useful cover width: 1000mm
- For roofs with a minimum pitch of 7°

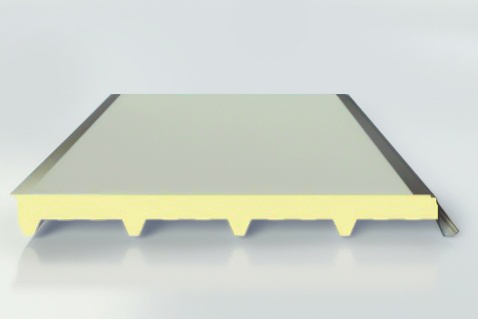

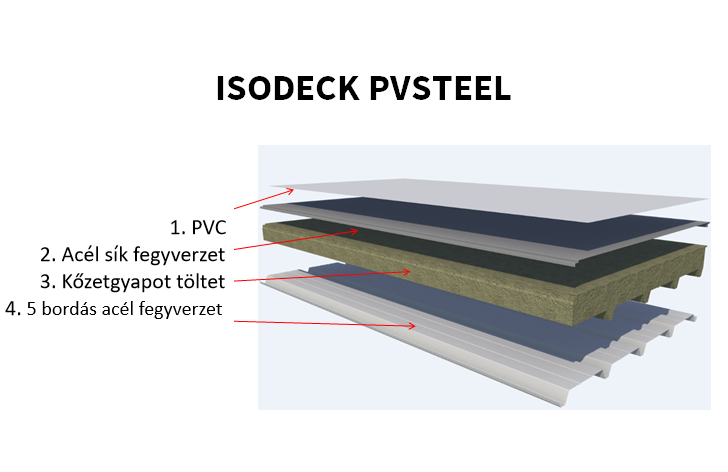

ISODECK, ISODECK Sinth and ISODECK PVSteel reverse profile sandwich panels
The ISODECK roof panel is an inverted profile sandwich panel type, where the lower 5 ribbed armouring is made of painted steel and the upper armouring is made of flat bituminous board, PVC or PVC coated steel. Typically used for flat, low-sloped roofs, the thicker steel armouring and inverted installation make this type of roof panel structurally stronger than conventional roof panels.
Technical data:
- Upper armament:
ISODECK: bituminized cardboard
ISODECK Sinth: PVC
ISODECK PVSteel: PVC coated steel
- Filling: PUR and PIR foam or rock wool (ISOFIRE DECK PVSteel)
- Lower armament: pre-painted galvanised steel plate (EN10346)
- Useful cover width: 1000mm
Steel armour thickness (0.45-0.80mm), allowing greater support clearance

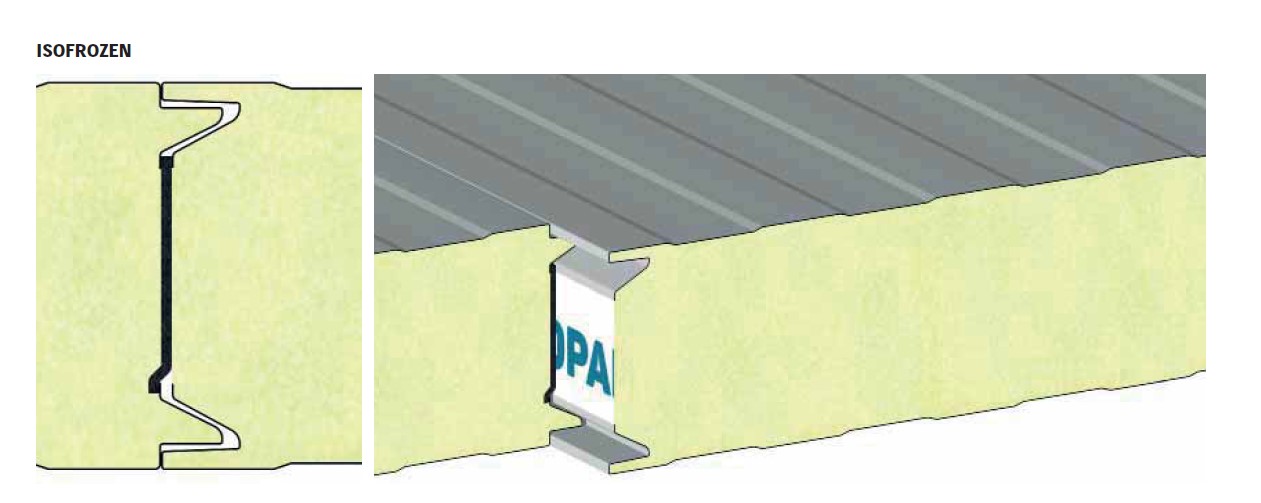

ISOFROZEN cold storage sandwich panel

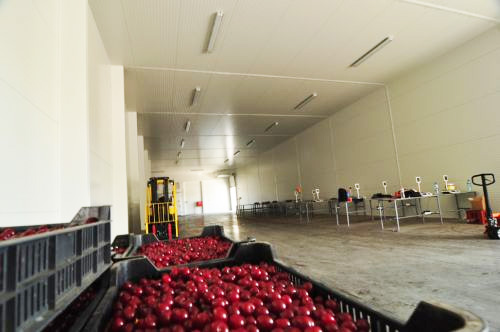

A cold store and a space for storing and preserving food can have positive or negative temperatures. In general, the former can have a temperature of +8 and -1 degrees Celsius, while the latter can have a temperature of -25 degrees Celsius.
ISOFROZEN is a cold store wall panel with a useful width of 1150mm, so the panels are joined together in a sparse and special grooved design. It is a self-supporting, easy to install panel type, designed to provide high levels of thermal insulation with an engineered jointing method to meet the needs of a temperature controlled environment.
Technical data:
- Internal armament: pre-painted galvanised steel plate (EN10346)
- Insulating core: PUR or PIR foam
- External armament: pre-painted galvanised steel plate (EN10346)
- Useful cover width: 1150mm
- Cold storage connection, excellent thermal insulation
- Can also be used as a ceiling
ISOAGRO AGRAR sandwich panel
Isoagro roof sandwich panels are 5 or 3 rib roof insulation panels with an inner side armouring of fibreglass reinforcement foil, which unlike steel, does not corrode. This type of panel is recommended for agricultural environments (e.g. cattle farms) as it is more resistant to aggressive environments than steel.
Mininum can be used on roofs with a 7% pitchMininum can be used on roofs with a 7% pitch.
For IsoAgro 3, IsoAgro 5 sandwich panel RO
- Painted galvanized steel sheet EN 10143,Painted galvanized steel sheet according to EN 10143,EN 10346 and EN 10169. The coating can be varied according to the customer's requirements (polyester, PVC, PVDF).
- Filling: PUR or PIR foam.
- A fibreglass reinforcement film that is resistant to micro-organisms, bacteria and certain acids found in agricultural buildings. Thickness: 0,5 mm.Colour: white translucent
- Self-drilling screw with washer and EPDM gasket.
- Calotte.

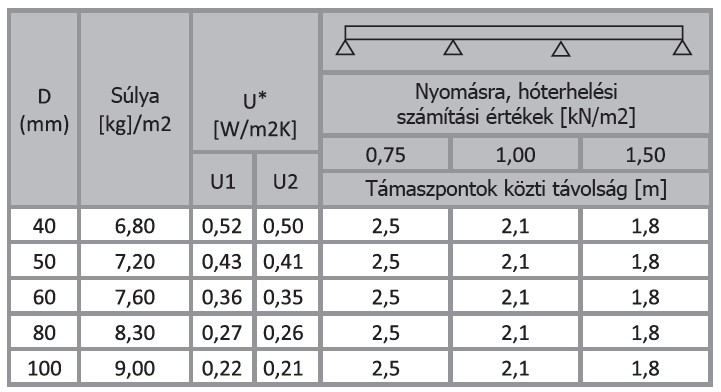

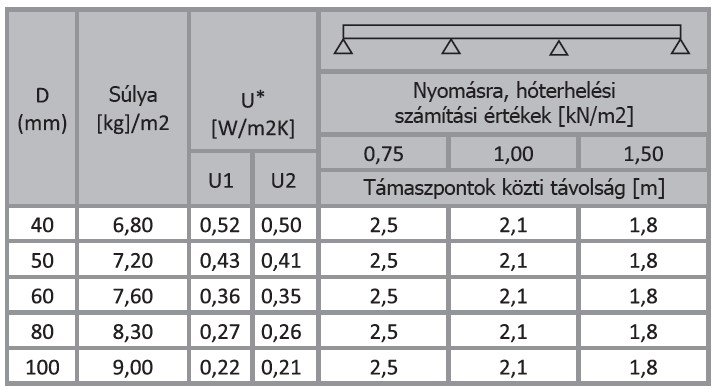

U* - heat transfer coefficient, U1 - heat transfer coefficient taking into account the geometry of the panel profile and the thermal effect of the coupling.U* - heat transfer coefficient, U1 - heat transfer coefficient taking into account the geometry of the panel profile and the thermal effect of the coupling.
U2 - heat transfer coefficient taking into account the geometry of the panel profile. Calculated according to EN 14509:2013 A. 10.
Standard panel lengths are between 2 m and 10 m. Other panel sizes require consultation with the technical department.

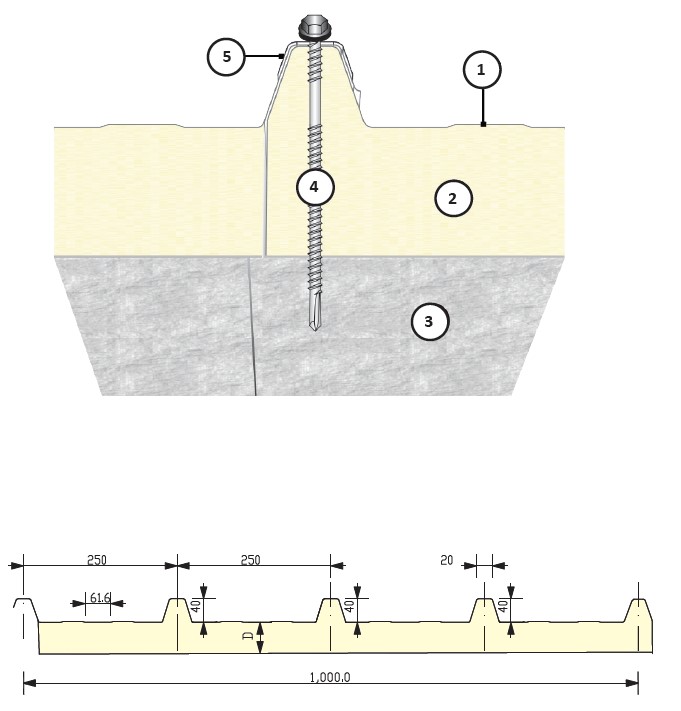

IsoAgro 5 SANDVICSPANEL FOR FIRING RS
- Painted galvanized steel sheet EN 10143,Painted galvanized steel sheet according to EN 10143,EN 10346 and EN 10169. The coating can be varied according to the customer's requirements (polyester, PVC, PVDF).
- Filling: PUR or PIR foam.
- A fibreglass reinforcement film that is resistant to micro-organisms, bacteria and certain acids found in agricultural buildings. Thickness: 0,5 mm. Colour: white translucent
- Self-drilling screw with washer and EPDM gasket.
- Calotte.
U* - heat transfer coefficient, U1 - heat transfer coefficient taking into account the geometry of the panel profile and the thermal effect of the coupling.U* - heat transfer coefficient, U1 - heat transfer coefficient taking into account the geometry of the panel profile and the thermal effect of the coupling.
U2 - heat transfer coefficient taking into account the geometry of the panel profile. Calculated according to EN 14509:2013 A. 10.
Standard panel lengths are between 2 m and 10 m. Other panel sizes require consultation with the technical department.
