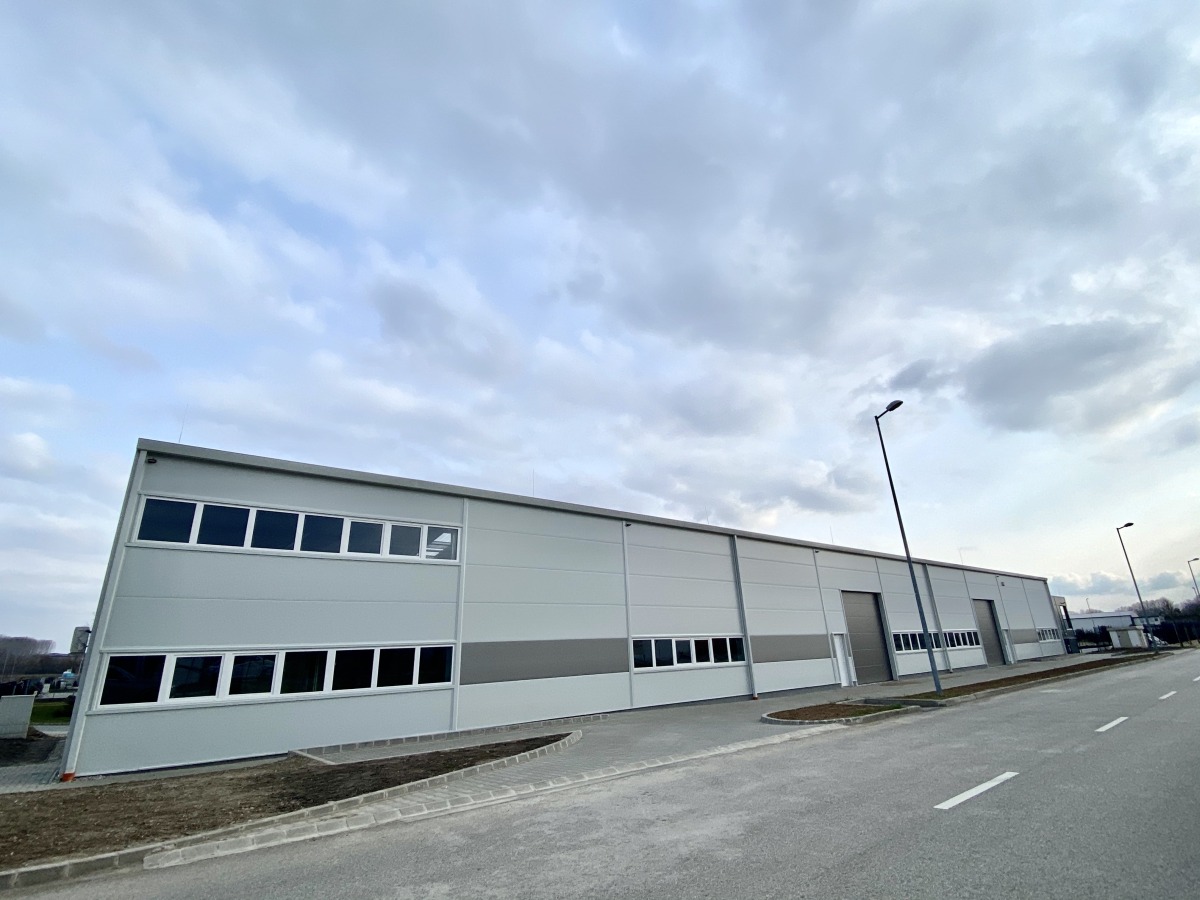

Insulating wall panels are one of the most popular products in modern architecture. The insulating core between two steel armatures creates a system that is rigid, slab-like, highly insulating and excellent for use as an external facade cladding element in the construction of even the largest factories.
A sandwich panel wall is a practical and economical solution for all new builds and renovation projects. The infill between the two steel armourings can be PUR foam, PIR foam or Rockwool. The thermal insulation of the former is outstanding, while the latter is the best in terms of fire resistance.
Wall sandwich panel with visible fixing
Available in 30-120mm thickness. The best, most optimal choice when guided by a specific budget. Easily variable, with many different types available.

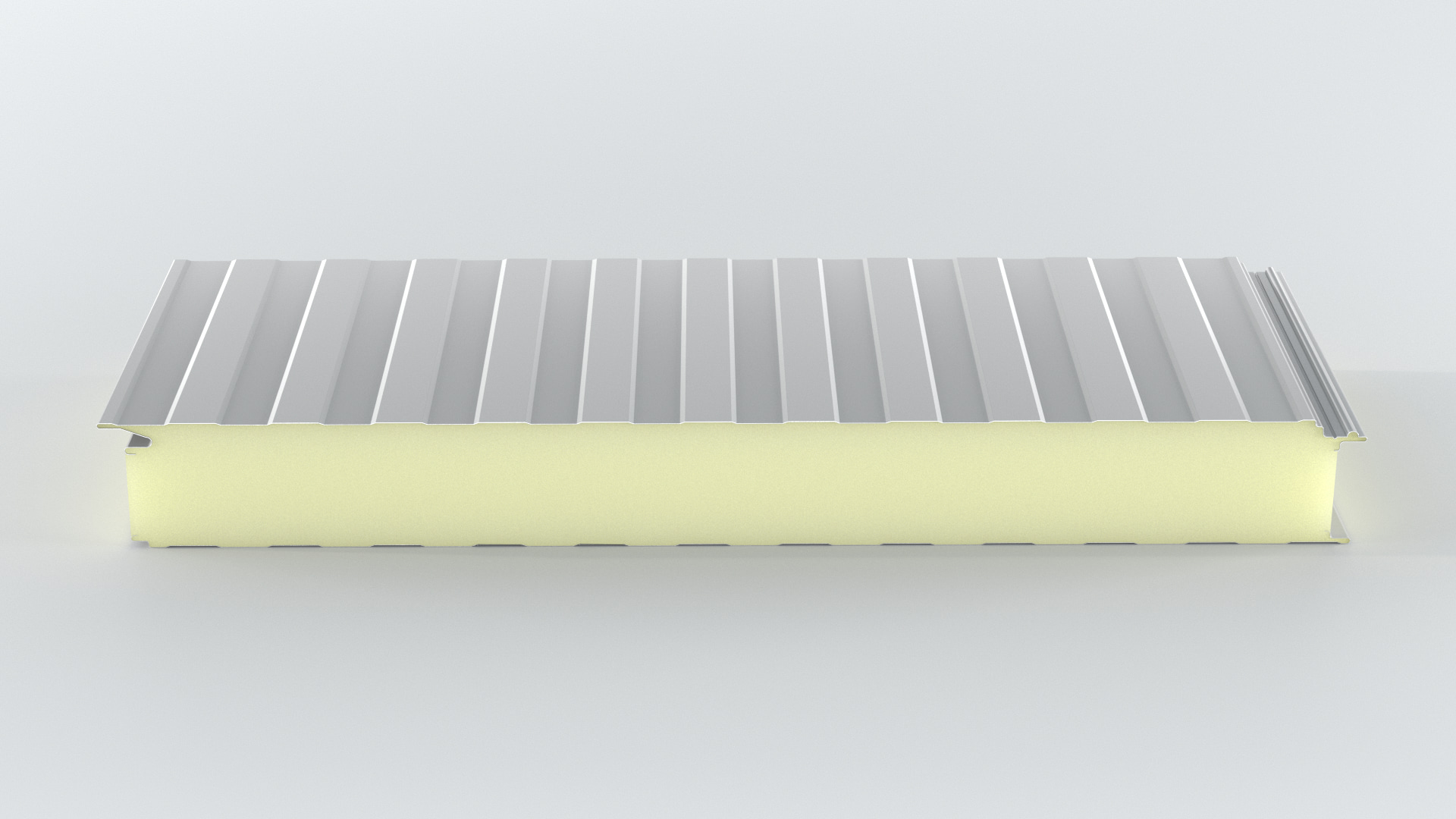

Wall sandwich panel with concealed fixing
Available in 40-120mm thickness. By using it, the fasteners become invisible and the panel armouring becomes uniform, free from screw heads. An excellent choice for modern, unique looking buildings.

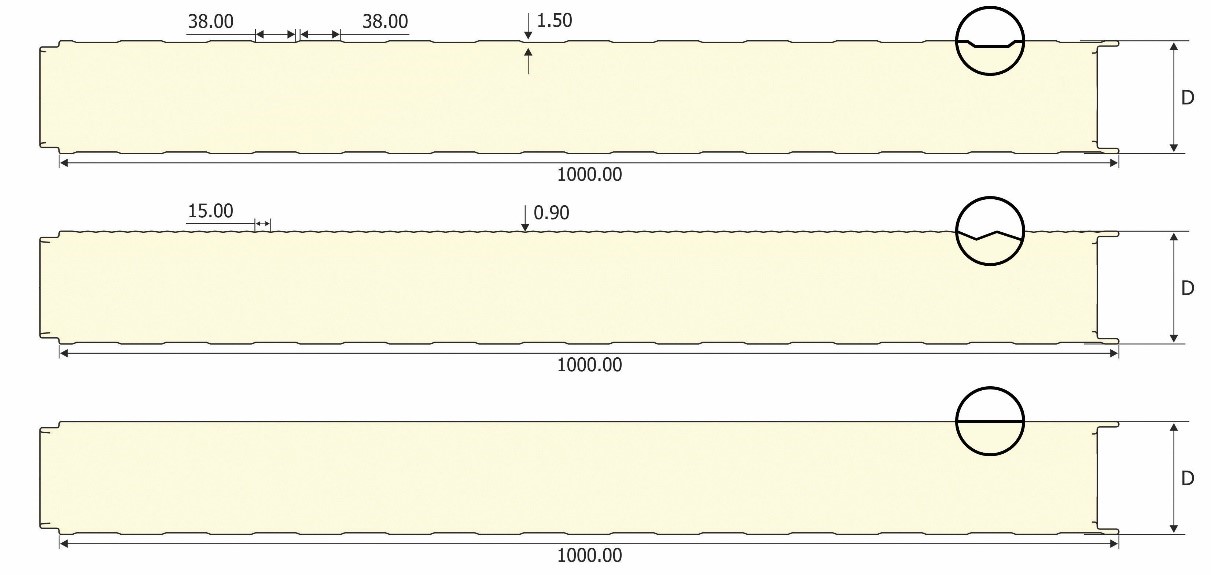

Wall panel with visible fixing sectional drawing

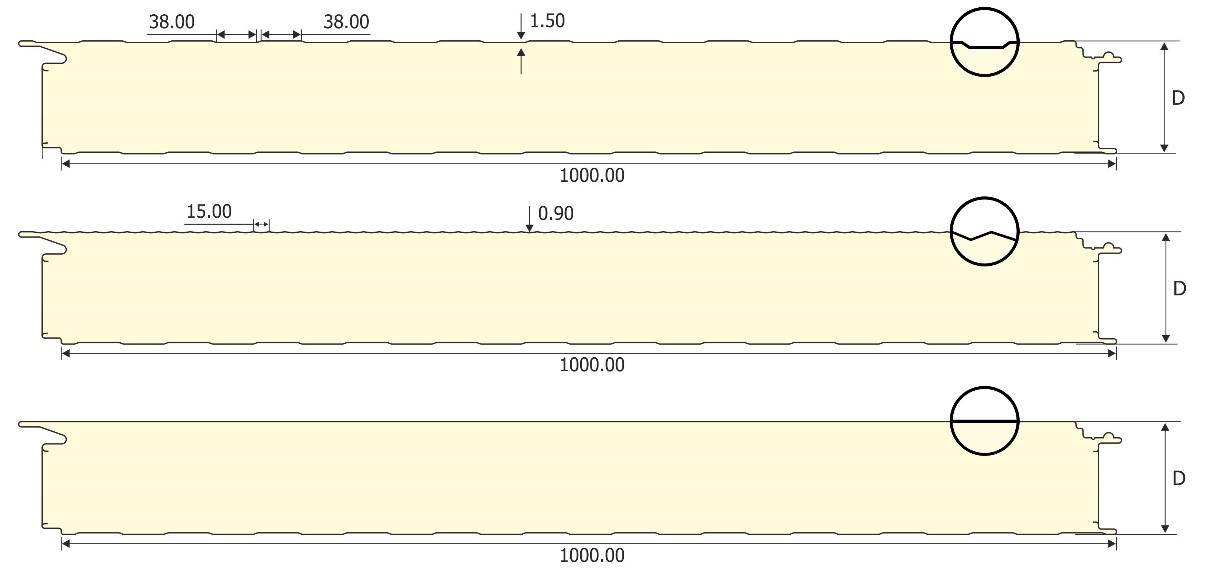

Wall panel with concealed fixing sectional drawing
| Features | Parameters |
|---|---|
| Useful width: | 1000mm (1150mm for some models) |
| Installability: | Can be installed horizontally and vertically |
| Core thickness: | 30-200mm |
| Thermal insulation core material: | PUR or PIR foam or rock wool |
| Coating: | Standard steel coating, 25µ PE Ral standard colour |
| Weapon type: | banded, micro, smooth |
| Minimum length: | 2000mm (tolerance up to 3m +/-5mm) |
| Maximum length: | 14 500mm (tolerance from 3m +/-10mm) |
| Weight: | Between 9-14kg/m2 (for PUR or PIR foam) |
| Choice of colours: | 7-8 colours |
Ask for our offer for a sandwich panel, our expert colleague will prepare it and send it to you by email, tailor-made!
Buy from our webshop from the largest stock of sandwich panels in Hungary, available from stock, with delivery within 1 week!
Downloads from
Transparent fixing wall panel characteristics
Hidden mounting wall panel characteristics
Insulating wall sandwich panels are widely used
- for industrial halls, warehouses
- for agricultural building
- for interior architectural solutions

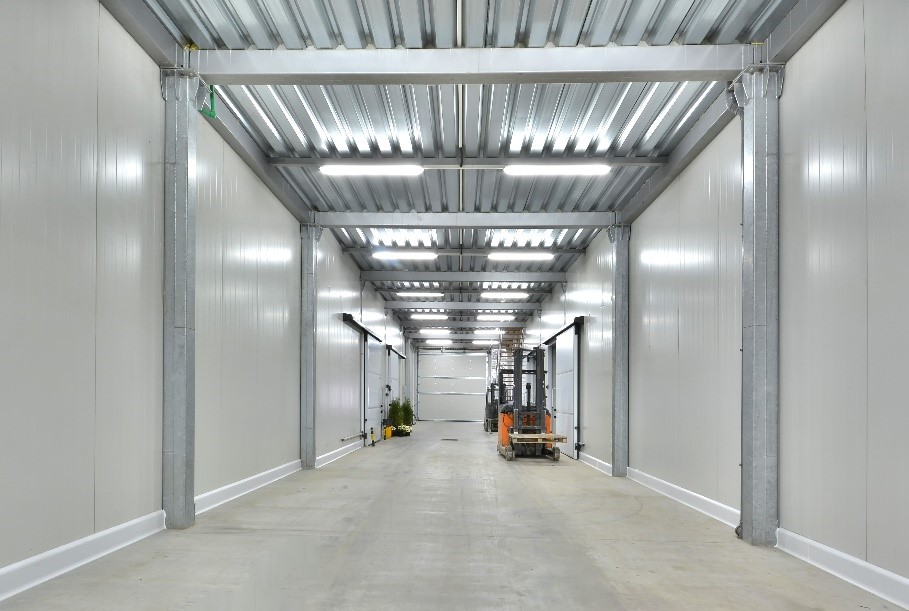

- for food cold storage
- for sports halls, halls
- for partitions

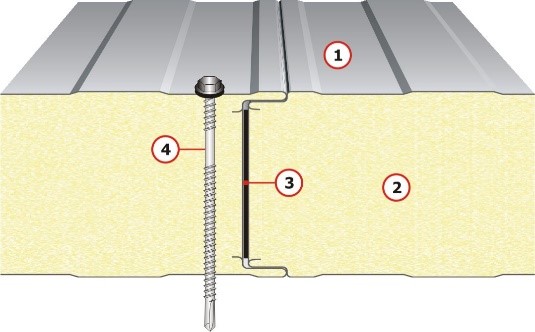

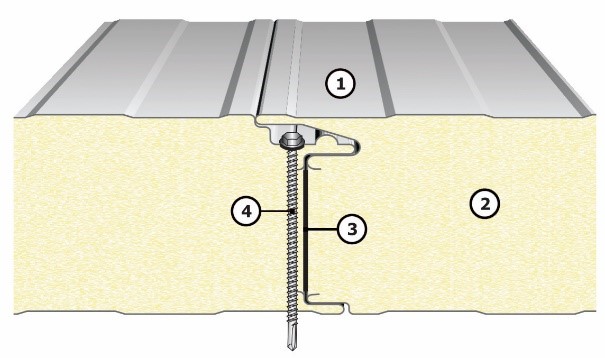

Side connection of wall panels
- Painted steel armour, in accordance with EN 10143, EN 10169 and EN 10346. Available in several coatings, standard glossy PE25µ.
- PUR or PIR insulating foam
- Panel connection with airtight seal
- Sandwich panel screw (self-drilling, hex head) with EPDM gasket, galvanized or Ral standard colour
Packaging
In order to ensure that loading and transport is damage-free, the panel pallets are wrapped in plastic film, while a foam spacer board is placed between them on the top/bottom.
The maximum weight of the pallets is 1-1.5T, and the number of panels is determined by the thickness and length of the sandwich panel.
Storage
During handling and storage of the sandwich panel, the product can easily be damaged and therefore special care must be taken and the following instructions must be followed:
- Do not store more than 3 bundles on top of each other and always place a spacer (polystyrene block or board) between them
- In all cases, the sandwich panel should be stored in a slightly sloped position (with a slight slope of 5%) and the bundle should be laid on a rigid and flat surface with the bottom spacers to provide the slope. The reason for this: to prevent water from staying there.
- It is recommended to store the panel bundles under a cover or protect them from rain with a foil. Ventilation should always be provided.
- The protective foil on the metal armouring of the panel must not be exposed to direct sunlight and must be removed within 45 days of receipt.
General installation advice for wall sandwich panels
Weather conditions (temperature, wind, rain)
- Installation of panels is recommended between -5 and 20°C
- When using silicone or butyl tape, the temperature must not be lower than 4°C
- For safety reasons, the installation of sandwich panels is recommended below 10km/h wind speed
- For safety reasons, it is not recommended to install sandwich panels when it is raining
- When installing stone wool panels in rainy weather, special attention should be paid to the fact that the wall panels can only be installed when dry, if the cotton filling has been exposed to moisture
Panel movement
- A crane is the best tool for moving panels into the mounting position. Manual movement is also acceptable for lightweight panels.
- For more serious applications, the vacuum lift is recommended
Assembly tips
- A sealing strip should always be placed between the steel structure and the sandwich panel to prevent the panel from scratching or rubbing against the structure
In the case of vertical wall panel installation, the panels must be mounted on an L-profile (water trap, skirting board), which is a steel edge-bent element.
