Cold rolled galvanised light steel sections are a 21st century category of construction products and are increasingly popular for the benefits they offer. The sections are profiled on a long production line, so that sections of any size can be produced from the stress-relieved steel material.
Downloads from
Z element (large section) sizing table
Element C (large section) sizing table
SIGMA Element ECO sizing table
Benefits:
- easy and quick to install (with screw fastening) and handle
- high strength and load capacity
- 100% biodegradable and recyclable system
- no unnecessary waste is generated during production
- corrosion resistant galvanised steel material
- low assembly and delivery costs
- non-standard element types can be manufactured
- drilling (hole at screw connection) possible, even according to individual drawing
Features:

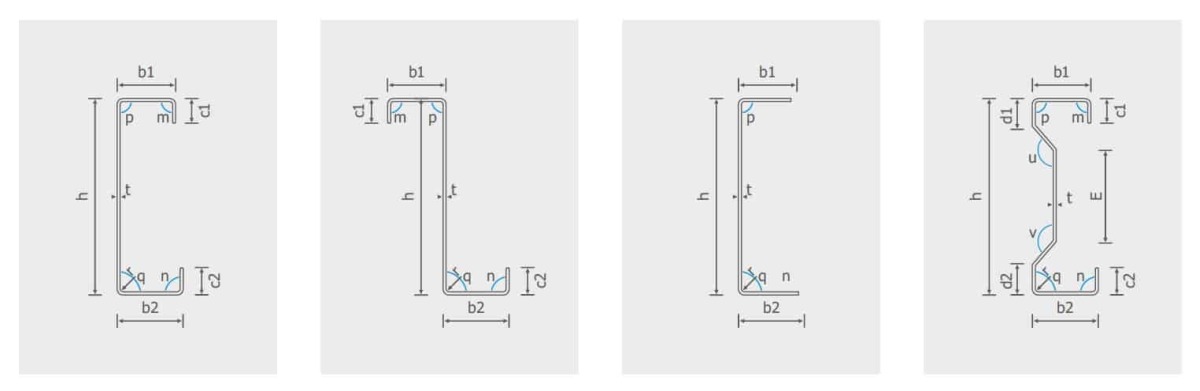

- Types: Z, C, U and Sigma coil
- Production length: 2-14,5m
- Material quality: S350GD + Z275, galvanized steel plate according to SR EN 10143 and SR EN 10346
- Material thickness: 0-4.0 mm

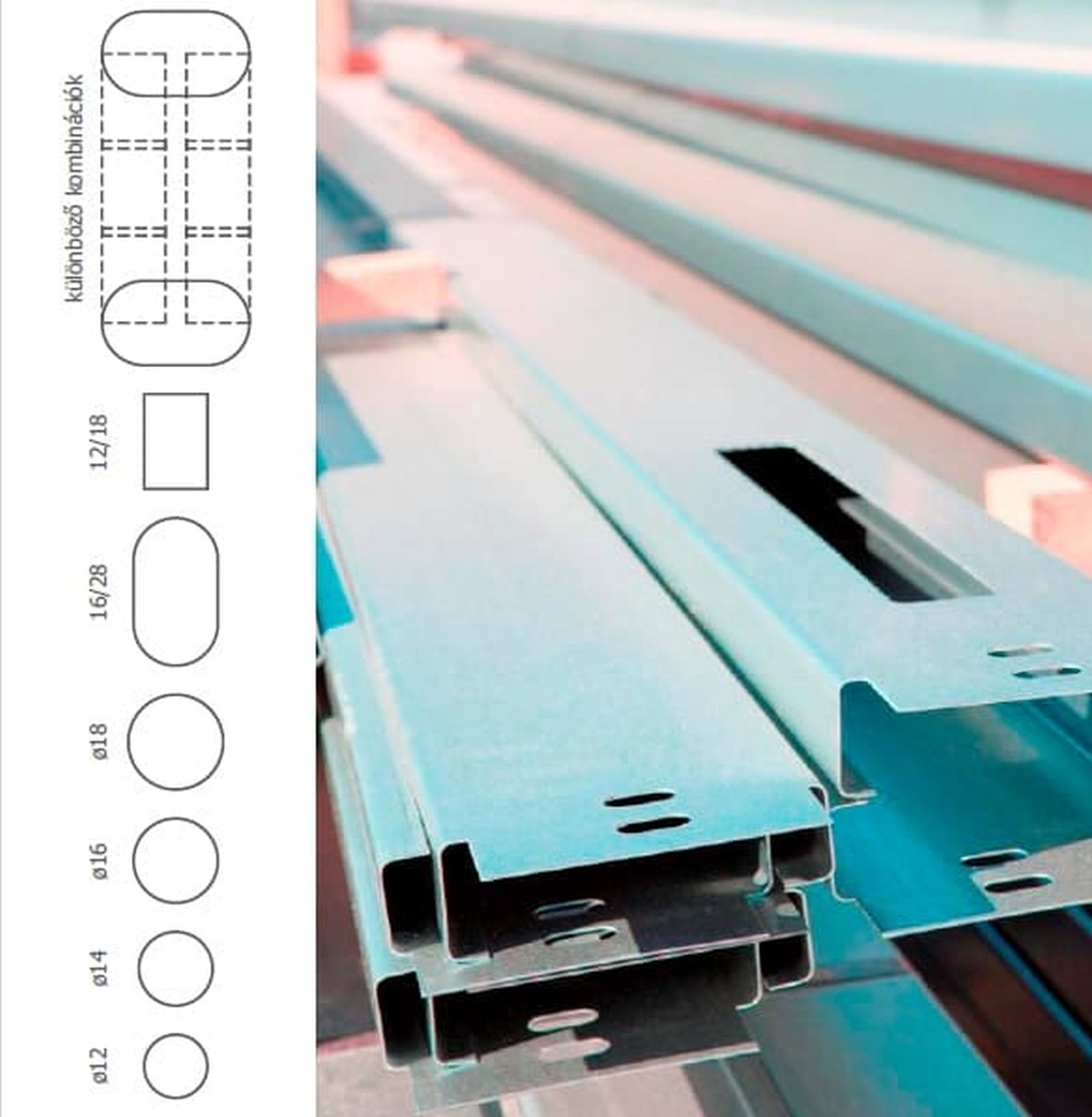

- Holes: pre-drilled, up to 12-18mm
Possible uses of galvanised steel
- As steel structural elements in residential, industrial or agricultural construction
- As a secondary support, as a roof or wall panel
Applications of galvanised steel elements

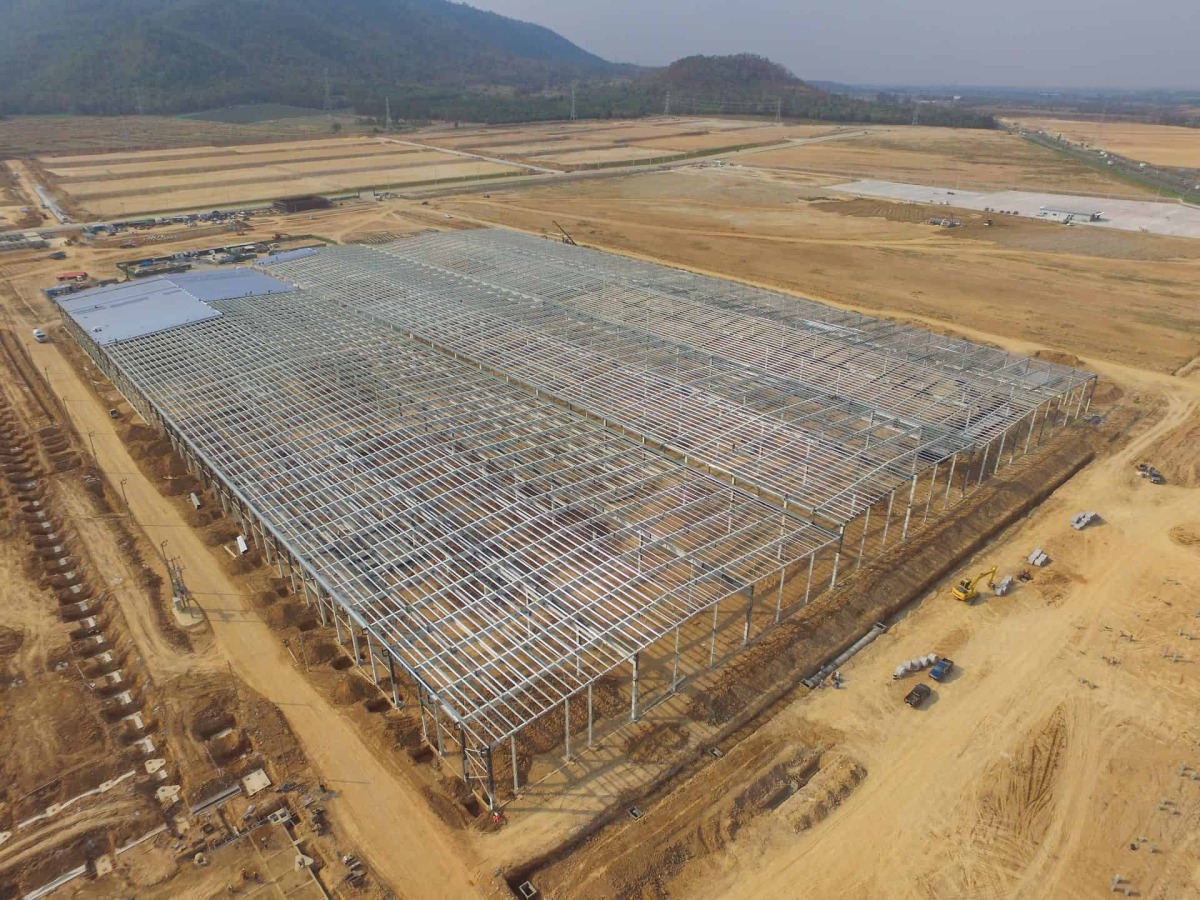

- production halls
- warehouses
- service buildings (workshop, service, car wash, storage, garage, etc.)
- lightweight residential buildings
In our offer we have standard sizes (41/47mm and 66/74mm), but we can also offer custom sizes as mentioned above. The production time of the product is typically 1-3 weeks, depending on the quantity, type and drilling.
A C-element spacer is also available (except for C100mm), which is always smaller than the size of the element ordered.
