The STIGMA Metal roofing tile is symmetrically mounted, made to measure and available..
With a module length of 350 or 400 mm, STIGMA gives you more options, and more options means more satisfaction.
Profile picture
Profile photo
STIGMA Metal roofing tile references
Call our sales team if you need professional advice for your purchase!
Petra Tóth
Phone number: +36 (30) 178 6521
E-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.
Buy replacement plates online in our web store, even with centimeter-by-centimeter sizing!

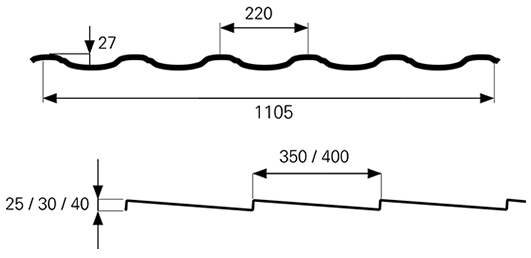

| Features | Dimensions |
|---|---|
| Plate thickness | 0,50 mm |
| Useful width | 1105 mm |
| Overall width | 1194 mm |
| Recommended max. plate length | 6110 mm |
| Drum height | 25 mm / 30 mm / 40 mm |
| Step length | 350/400 mm |
| Weight | ~4.5 kg/m2 |
| Roof pitch | > 9° |
Features
- Symmetrical mounting: mounting in any direction is possible. STIGMA plywood panels can be mounted in any direction (left or right).
- 3D cutters: connections invisible to the eye. STIGMA plywood is cut according to the shape of the wave, which makes the horizontal joints of the panels less visible.
- ON THE SURFACE Allow for faster and tighter fitting of plates. Mounting holes on the vertical rib allow fast, tight and accurate fitting of the plates. This not only makes assembly easier, but also speeds up the work considerably (applies to versions with 30 mm and higher ribs).
