Roof booms provide quick, easy and safe access to the roof for maintenance and roof protection.

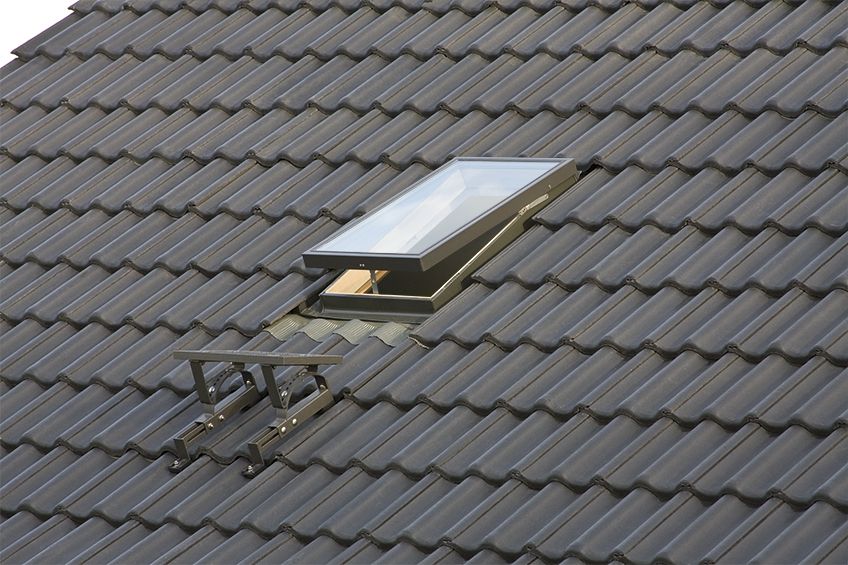

The skylight provides easy access to the roof and, as a window, allows sunlight and fresh air into the room. A traditional roof vent allows easy and quick access to the roof, functions as a light and, thanks to its ventilation position, provides ventilation to the room, recommended for unheated rooms.
Glass Roof Hoods
The glazed skylight makes it easy to get out onto the roof and is used to illuminate the interior spaces. Recommended mainly for unoccupied attics, it is mainly used for ventilation, with an upward opening window sash that can be fixed in three different positions.
SCALE: 46*55cm
AVAILABLE colours: RAL 8004 (brick red), RAL 7024 (anthracite)

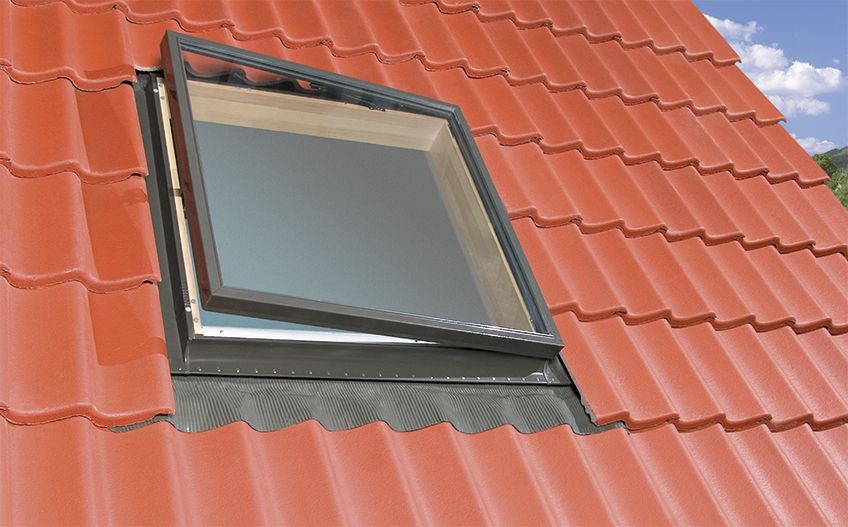

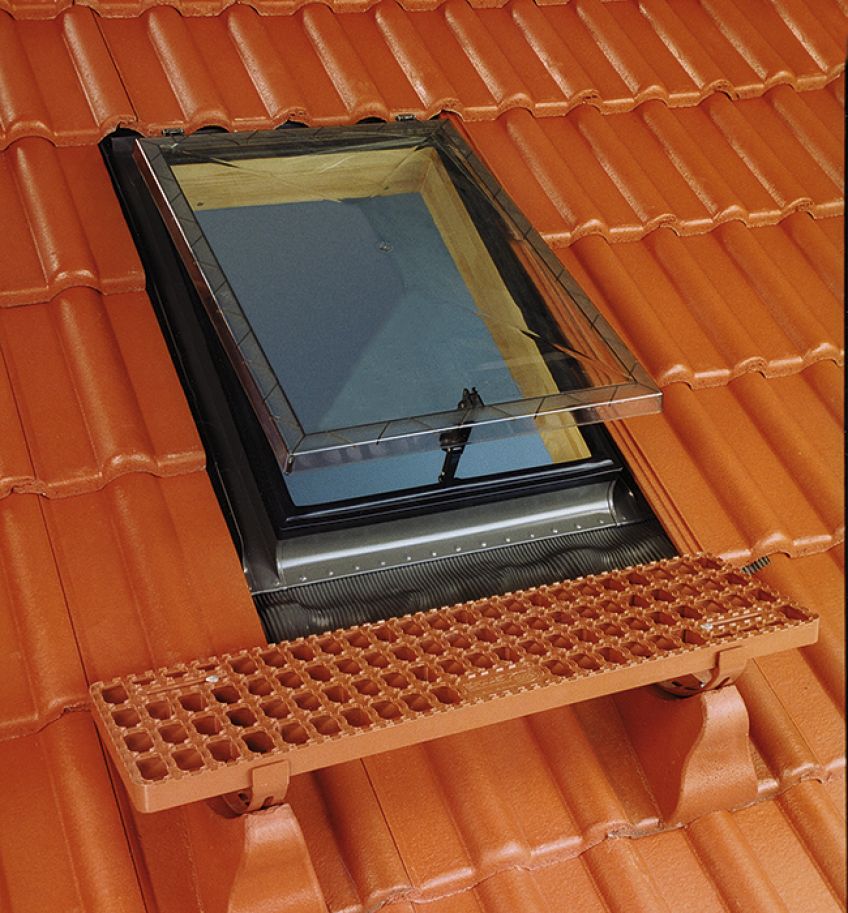

WG roof dormers are recommended for unoccupied attics. They allow easy access to the roof and also serve to illuminate the interior. The tempered glass window sash opens upwards.
- the case is made of vacuum impregnated pine,
- the window frame is made of extruded aluminium profile, which ensures its strength and durability,
- the WG roof vent is of a canopied construction and the window sash opens upwards,
- the opening handle allows the sash to be locked in three positions, ensuring ventilation of the room
- can be installed in roofs with pitches between 15° and 60°,
- Supplied with an integrated enclosure frame with a lead frame at the bottom,
- each window pane is toughened, with increased resistance to hail and other forces
- the pins for fixing the window sash are rounded and do not cause damage during use,
- can be easily mounted on the roof battens, eliminating the need to make triggers and doublers, and can be slid horizontally to better fit the roofing materials,
Installation guide
Plate Roof Boom
A plate roof arch is a curved element made of steel plate of the same material and colour as Metal roofing tile , primarily used for roof access.
SCALE: Overall: 50*60cm, useful: 45*55cm
